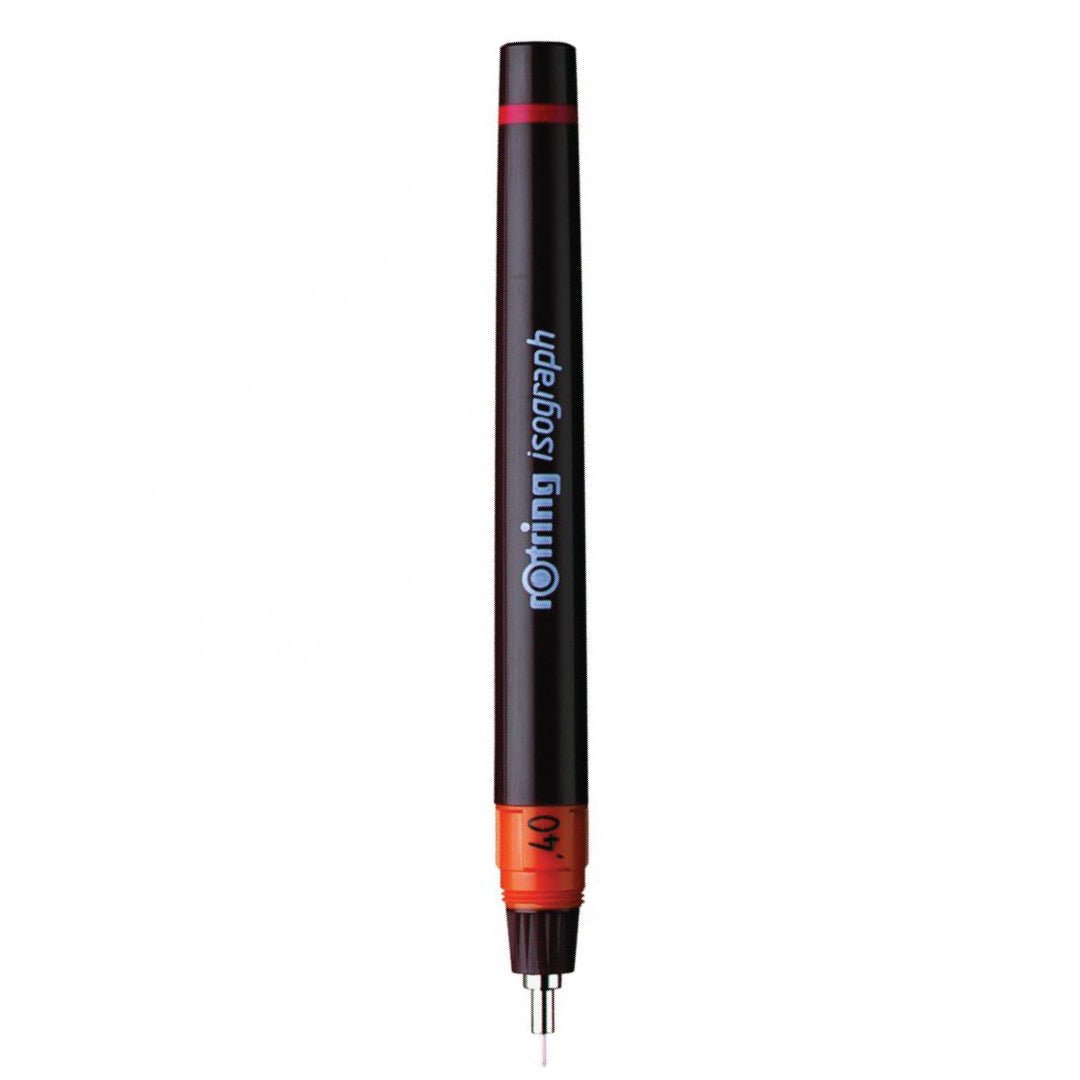

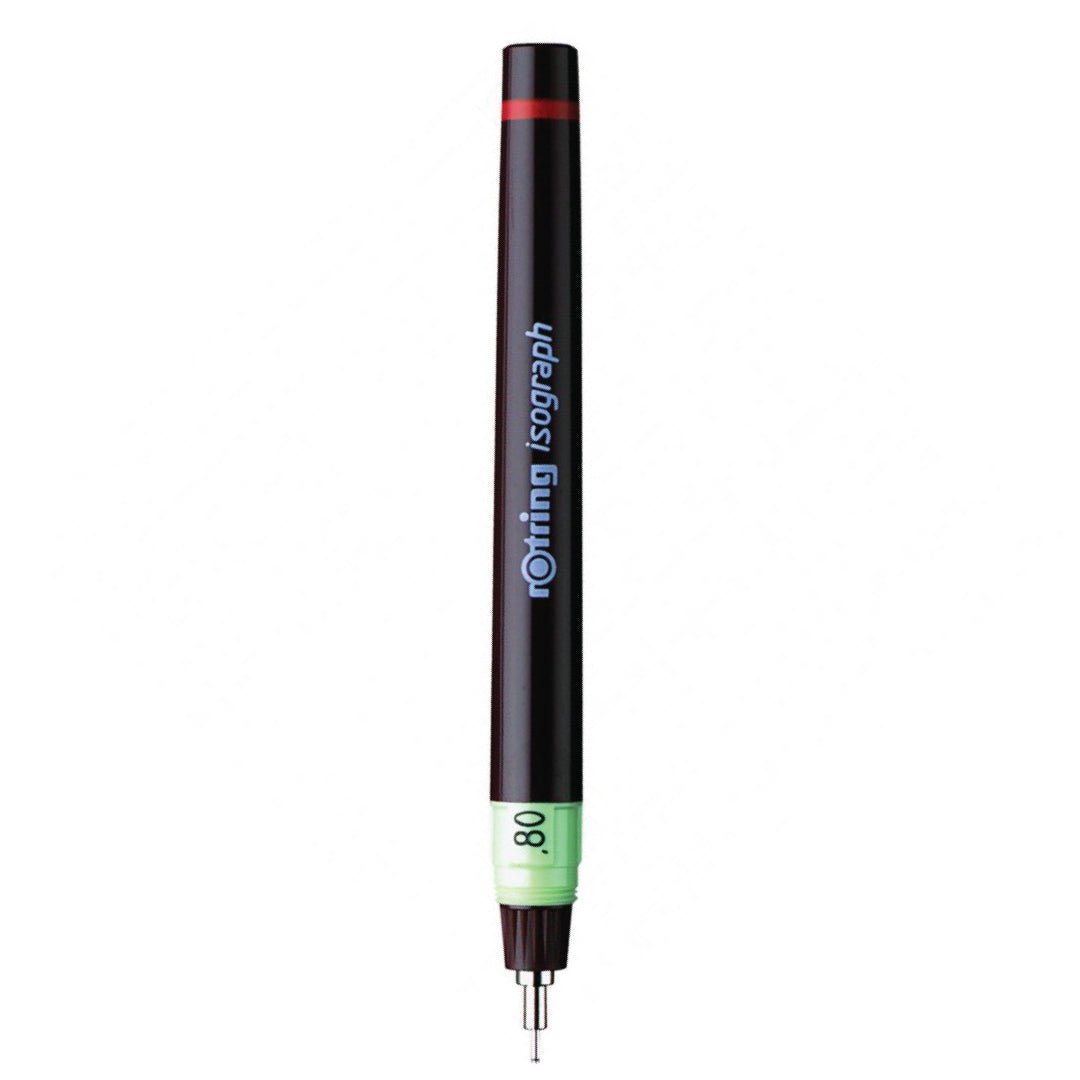

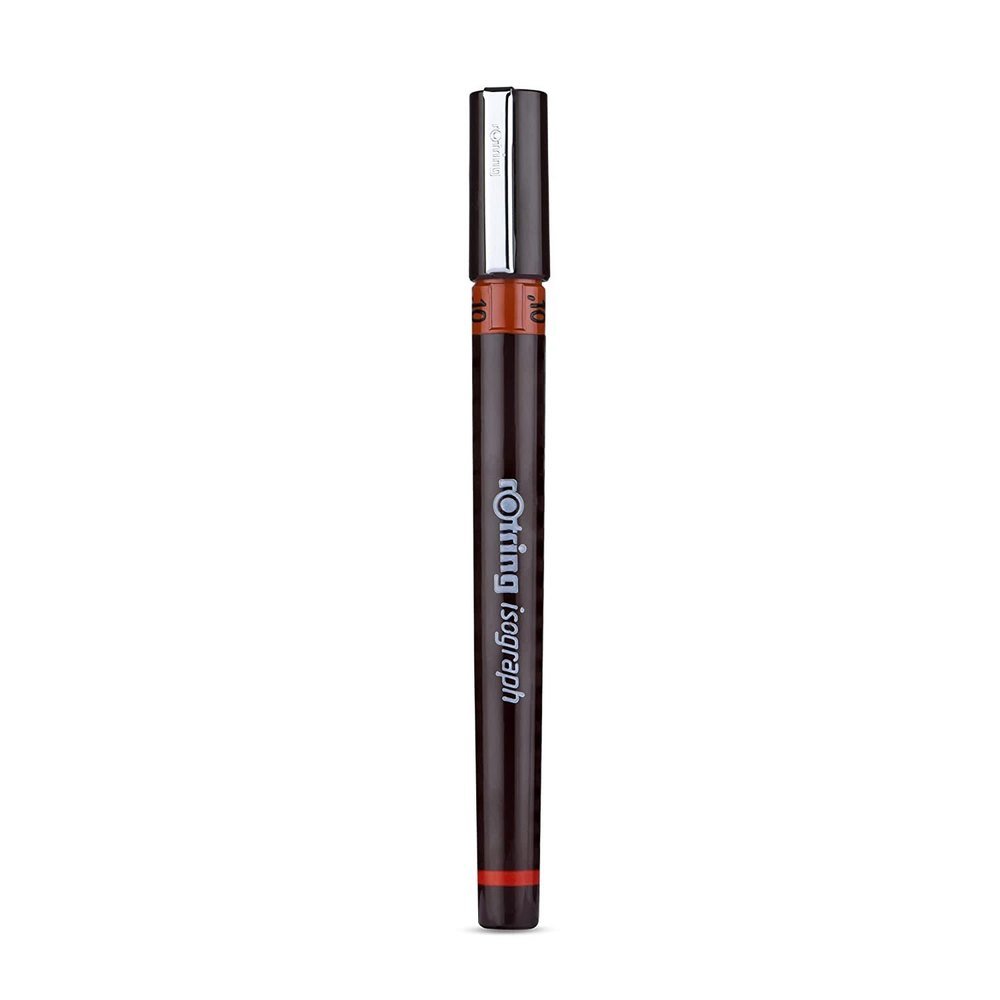

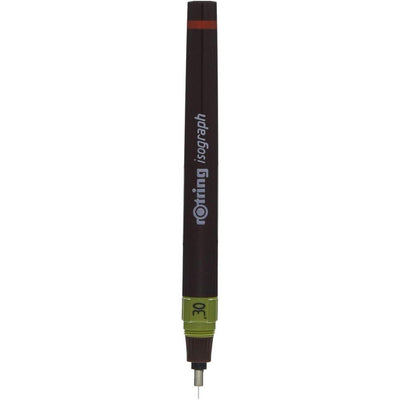

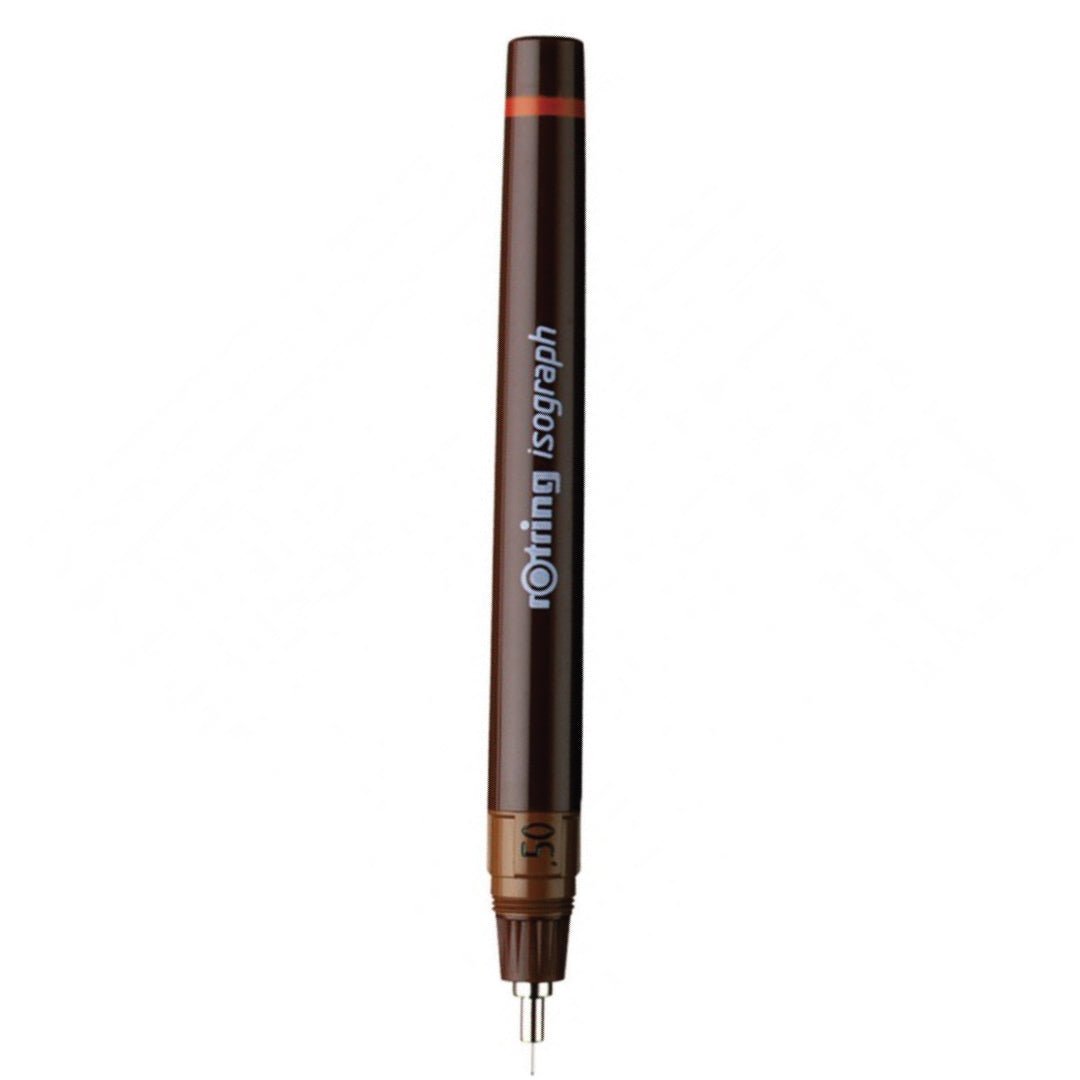

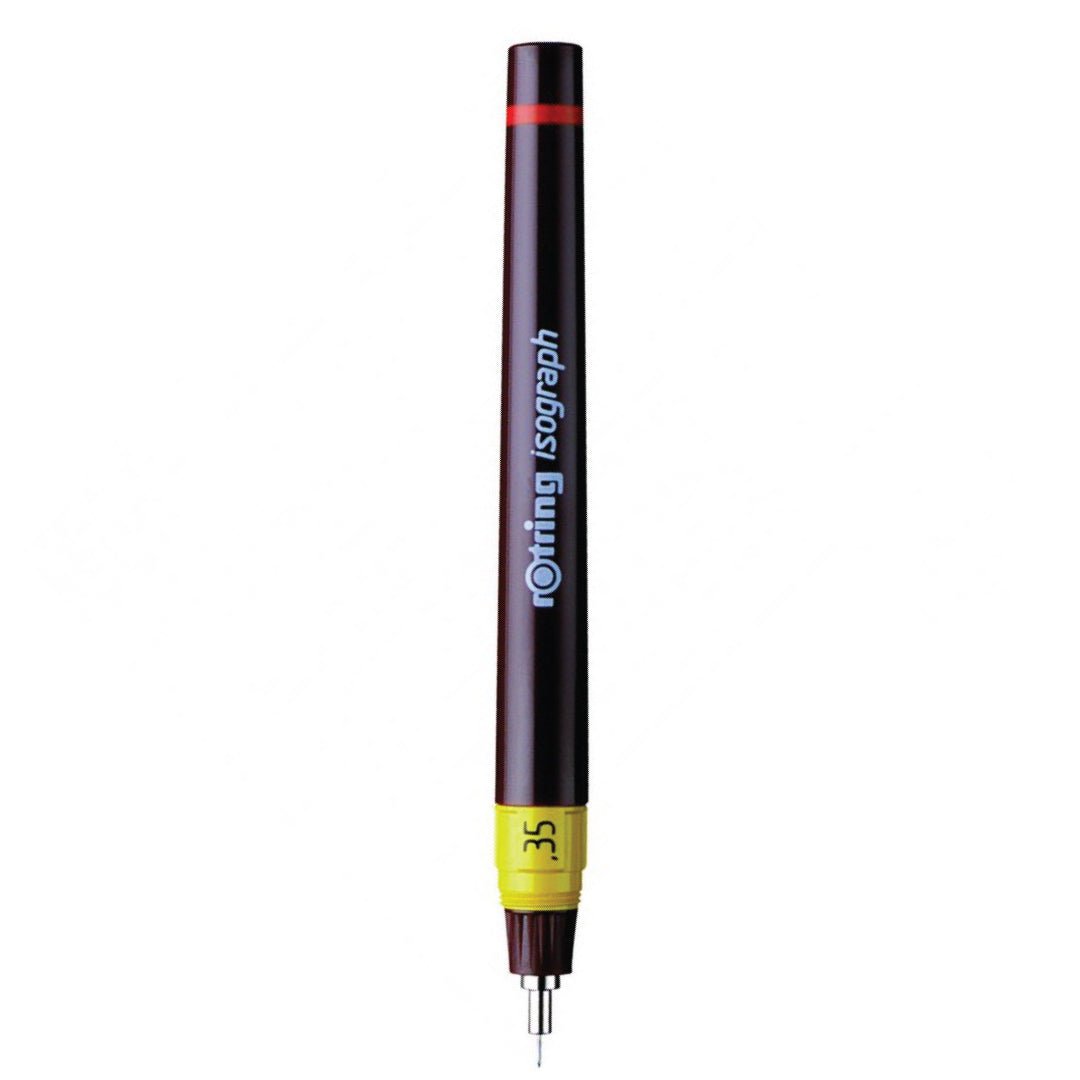

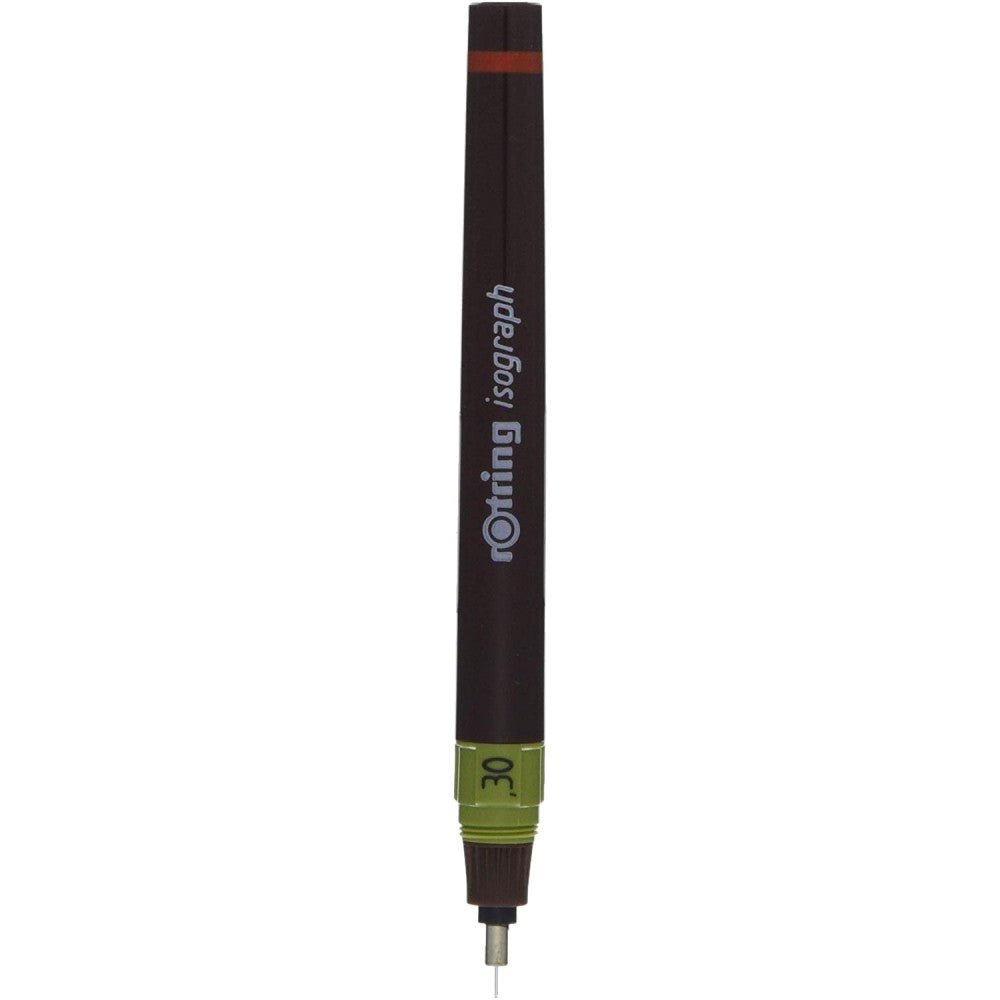

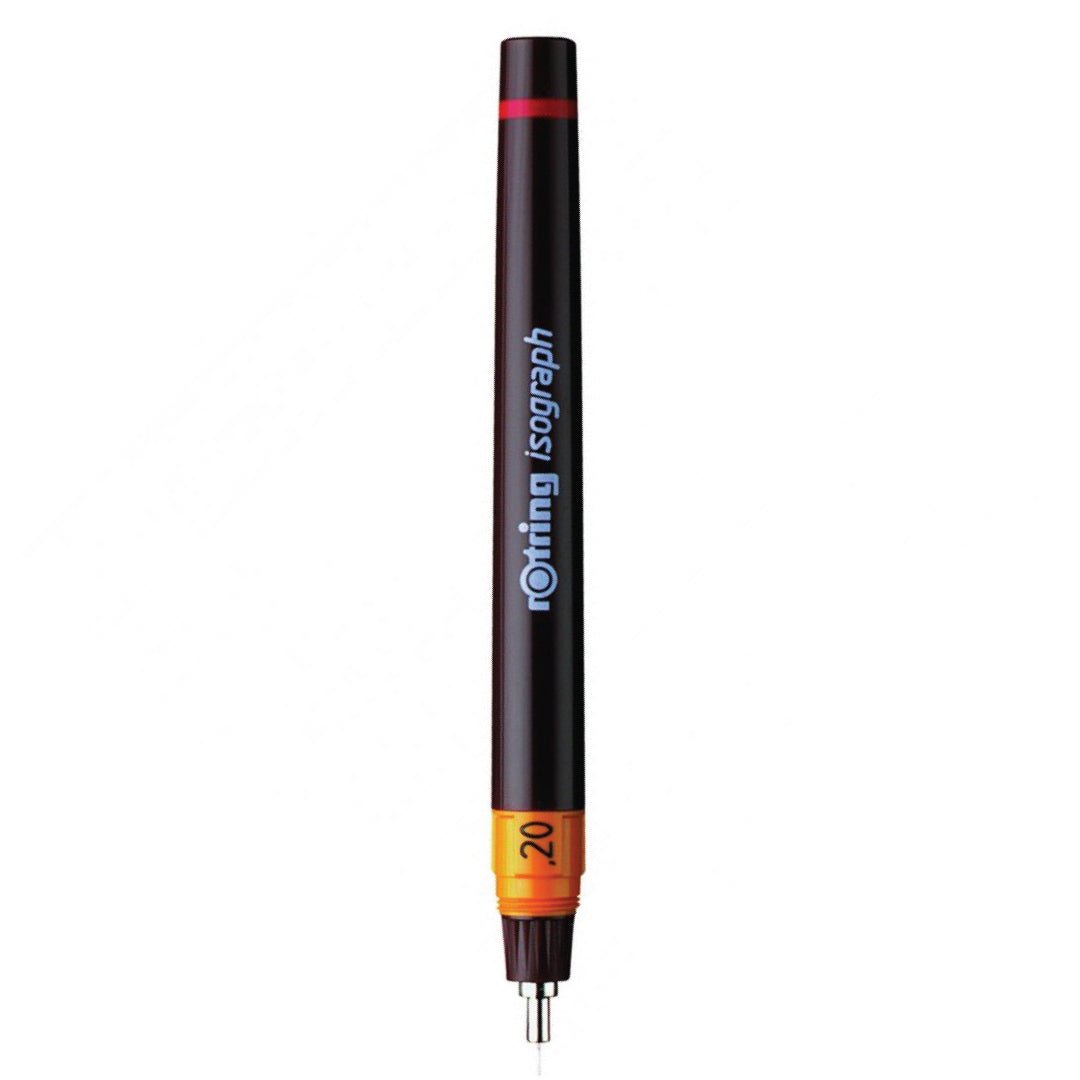

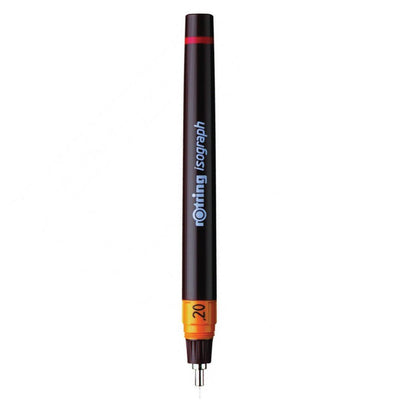

The Rotring Isograph Technical Drawing Pen is a refillable precision pen for clean, consistent line work in drafting, illustration and technical writing. Choose from line widths between 0.1 mm and 1.0 mm to suit everything from fine detail to bold outlines.
A wear-resistant, hard chrome-plated stainless steel nib draws lines of exact, even width, and the refillable ink reservoir is built for frequent professional use. You can see the ink level at a glance, and a push-on sleeve gives easy access for cleaning. Each barrel is colour-coded by line width so you can pick the right pen quickly, finished with the signature Rotring red ring. Ink is sold separately.
Key Features
- Precision technical pen for sharp, consistent line widths.
- Hard chrome-plated stainless steel nib for durability and accuracy.
- Refillable ink reservoir with visible ink level.
- Push-on sleeve for easy cleaning and maintenance.
- Colour-coded barrel for quick line-width identification.
- Available in 11 line widths from 0.1 mm to 1.0 mm.
| Brand | Rotring |
| Product | Rotring Isograph Technical Drawing Pen |
| Line Widths | 0.1, 0.18, 0.2, 0.3, 0.35, 0.4, 0.5, 0.6, 0.7, 0.8, 1.0 mm |
| Nib | Hard chrome-plated stainless steel |
| Ink System | Refillable reservoir |
| Recommended Ink | Rotring Isograph drawing ink |
| Ink Included | No |
| Barrel | Colour-coded by line width |
| Suitable Surfaces | Tracing paper, vellum, lineboard |
No, ink is sold separately. Rotring Isograph Drawing Ink is the recommended refill for consistent flow.
Fine widths such as 0.1 to 0.25 mm suit detail and hatching, 0.3 to 0.5 mm suit general drafting and lettering, and 0.6 to 1.0 mm suit bold outlines and borders.
Use recommended drawing ink, keep the pen capped when not in use, and rinse the nib section with water if you will not use it for a while.
It works on tracing paper, vellum and lineboard, as well as good-quality drawing paper.
No. The Isograph is a drawing instrument and is not suitable for use on skin or for tattooing.
- Vendor: Rotring
- Type: Technical Pens
- Title: Rotring Isograph Technical Drawing Pen (0.1mm – 1.0mm)
- Price: Rs. 2,400.00
